รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องขยายเสียงไฟเบอร์ออปติก | เวลาตอบสนอง: | โหมด MARK 50 ไมโครวินาที, โหมด C 130 ไมโครวินาที |
|---|---|---|---|
| เงื่อนไข: | ใหม่ 100% ของแท้ 100% | อุณหภูมิในการทำงาน: | -10+55°C ไม่เป็นน้ำแข็ง |
| การเลือกเอาท์พุต: | LIGHT-ON/DARK-ON (การเลือกสวิตช์) | ความสว่างในบริเวณ: | หลอดไส้: สูงสุด. 20,000lux กลางวัน:สูงสุด 30,000ลักซ์ |
| เน้น: | RGB fiber optic amplifier,NPN/PNP fiber optic detector,color-sensitive fiber sensor amplifier |
||
| Detection distance | Flush 1mm/Non-flush 2mm |
| Response time | MARK mode 50 microseconds,C mode 130 microseconds |
| Working temperature | -10+55°C no freezing |
| Output selection | LIGHT-ON/DARK-ON(Switch Selection) |
| Display Indicator | Operation indicator: red LED, dual digital monitor: double 7-digit display, the threshold(4-digit green LED indicator) and the current value (4-digit red LED indicator) are lit together. Current value range :0 to 9999 |

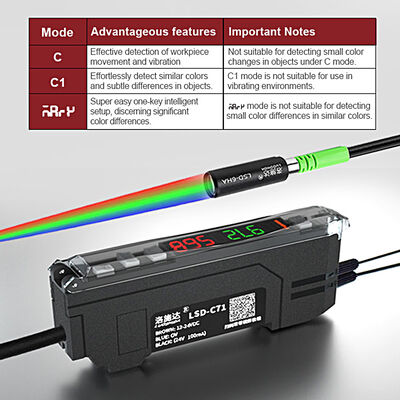

| Detection Method | Light intensity detection MAKR and color automatic matching C and color + brightness value detection Cl |
| Delay Function | Open delay timer/Open delay timer/Single timer/Open delay timer, optional. The meter display can be selected in duration:1ms to 9999ms |
| Control output | NPN/PNP open collector 24V, Max100mA(only main parts) Max 20mA(Residual voltage :1V when expansion parts are connected |
| Power supply | Between 12 and 24VDC+10%, floating rate (P-P):Maximum 10% grade 2 |
| Ambient brightness | Incandescent lamp: Max. 20,000lux, daylight:Max. 30,000lux |
Company Profile
FAQ
Relevant information about the service :
Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.
Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
